Night Scan Chief
Light Tower

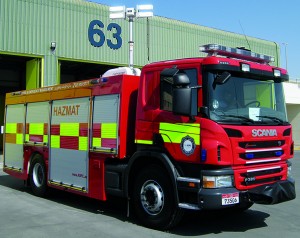

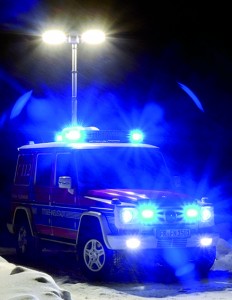

Will-Burt’s Night Scan Chief is a roof-mounted, fold-down light tower which requires no interior vehicle space. It is typically used on medium-size rescue, pumper rescue, service and utility vehicles or smaller wrecker vehicles. The Night Scan Chief provides up to 140,000 lumens of scene light and features a self-contained air system (no external air supply needed). Available with all DC (12V/24V DC) operations, the
Night Scan Chief does not require a generator or inverter.
The Night Scan Profiler is a space-saving, scene light option for the Night Scan Chief featuring 1500 watts of AC light. Measuring only 21″ wide, this compact scene lighting fixture enables installation on new or existing Emergency Services vehicles with limited available mounting space. Will-Burt’s Night Scan Profiler is also available in DC power, operating entirely from the vehicle’s standard battery system which is ideal for vehicles without a generator.
Specifications
| Night Scan Chief | 1.0 | 1.8 | 2.3 |
|---|---|---|---|
| Height (ft. / m) | 3.25 / 1.0 | 6 / 1.8 | 7.5 / 2.3 |
| System Weight Range (lb. / kg) | 97 / 44 - 135 / 61 | ||
| Auto Deploy and Auto Stow® | Yes | Yes | Yes |
| Time to Light | 8 seconds | 8 seconds | 10 seconds |
| Number of Lights Available | 2 or 4 | 2 or 4 | 2, 4 or 6 |
| Light Type Available | LED / Halogen | LED / Halogen | LED / Halogen |
| Maximum Lumens | 80000 | 140000 | 140000 |
| Full Pan and Tilt Light Positioning | Yes | Yes | Yes |
| Opposable Light Fixtures | No | No | No |
| VDC / Watts Maximum | 12 or 24 / 500 | 12 or 24 / 640 | 12 or 24 / 920 |
| VAC / Watts Maximum | 120 or 240 / 6000 | 120 or 240 / 6000 | 120 or 240 / 6000 |
| Profiler – Space-Saving Fixture Option | Yes – 2 or 3 lights | Yes – 2 or 3 lights | Yes – 2 or 3 lights |
| Beacon Light Option | Yes | Yes | Yes |
| Camera Option | Yes | Yes | Yes |
| Color Option | Standard Color White. Black Option for Additional Charge | ||
| *Survival Wind Speed (mph / km/h) | 140+ / 225+ | 140+ / 225+ | 114 - 140 / 184 - 225 |
| Operating Temperature | -22°F to +149°F / -30°C to +65°C | ||
| *Varies depending on light package – 125% NFPA Safety Factor | |||
Specifications are for reference only and are subject to change. Please contact Will-Burt Engineering for current and exact specifications.
