Night Scan Vertical

Night Scan Vertical
Light Tower

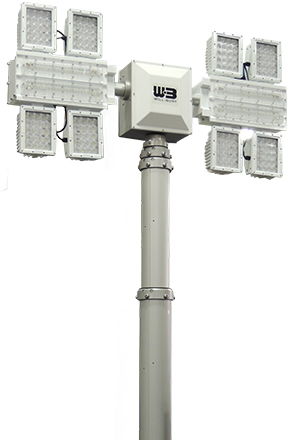

Night Scan Vertical Light Towers are vertically mounted light towers which may be installed internally or externally to the side or rear of a vehicle. Used to elevate lights and/or cameras throughout widespread scene lighting circumstances, the Night Scan Vertical is typically used on heavy rescue vehicles, full-size mobile command centers, airport ARFF vehicles and large wreckers. Opposable light fixtures provide equal scene lighting forward and backward at the same time, delivering up to 240,000 lumens of 360˚ scene light. The Night Scan Vertical Light Towers is ideal for any vehicle where maximum scene light and complete scene illumination is required.

Essential Features

  • Higher height, more light
    • Multiple height options up to 30 feet deliver more scene light
  • Turns night into day
    • Up to 240,000 lumens of scene light
  • Directs light where it’s needed most
    • Full rotation and tilting of lights
  • Lights up entire scene fixtures
    • Can be pointed in opposite directions delivering 360° of scene lighting
  • Requires minimal time for operation
    • Auto Deploy and Auto Stow®
  • Maximum Reach
    • Vertical 5.4-17 = 17 ft. / 5.2 m
    • Vertical 6-20 = 20 ft. / 6.1 m
    • Vertical 7-25 = 25 ft. / 7.6 m
    • Vertical 8-30 = 30 ft. / 9.1 m

Specifications

Night Scan Vertical 5.4-17 6-20 7-25 8-30
Height ft. / m 17 / 5 20 / 6 25 / 7.6 30 / 9
Auto Deploy and Auto Stow® Yes Yes Yes Yes
Number of Lights Available 4, 6, 8 or 12 4, 6, 8 or 12 4, 6, 8 or 12 4, 6, 8 or 12
Light Type Available LED LED LED LED
Maximum Lumens 240,000 240,000 240,000 240,000
Full Pan and Tilt Light Positioning Yes Yes Yes Yes
Opposable Light Fixtures Yes Yes Yes Yes
VDC / Watts Maximum 24 / 1,950 24 / 1,950 24 / 1,950 24 / 1,950
VAC / Watts Maximum 120 or 240 / 9000 120 or 240 / 9000 120 or 240 / 9000 120 or 240 / 9000
Profiler - Space-Saving Fixture Option Yes Yes Yes Yes
D-TEC II® Power Line Detection System Option Yes Yes Yes Yes
Beacon Light Option Yes Yes Yes Yes
Camera Option Yes Yes Yes Yes
Color Option Standard Color White. Black option for Additional Charge
*Survival Wind Speed (mph / km/h) 100+ / 161+ 88+ / 141+ 74+ / 119+ 63+ / 101+
Operating Temperature -22°F to +149°F / -30°C to +65°C

*Varies depending on light package – 125% NFPA Safety Factor
Specifications are for reference only and are subject to change.  Please contact Will-Burt Engineering for current and exact specifications.
Will-Burt lighting solutions enable you to illuminate an emergency scene, recovery operation or job site to improve night time operation productivity and ensure safety. We offer multiple light tower mounting options, internally, on side or roof of a vehicle and can deliver up to 220,000 lumens of light per light tower. Our internal and side mounted pneumatic towers can elevate lights to 42 ft. (12.5 m), while our self-contained roof-mounted units can elevate up to 25 ft. (7.5 m) from the vehicle roof. As added flexibility in accomplishing multiple tasks with one product, our light towers may also be combined with a security camera. Will-Burt’s mobile security and camera solutions enable you to monitor and protect valuable work site equipment with the flexibility of portability from site to site. Will-Burt delivers complete surveillance solutions with full pan and tilt capabilities.
