Pneumatic Systems

half extended

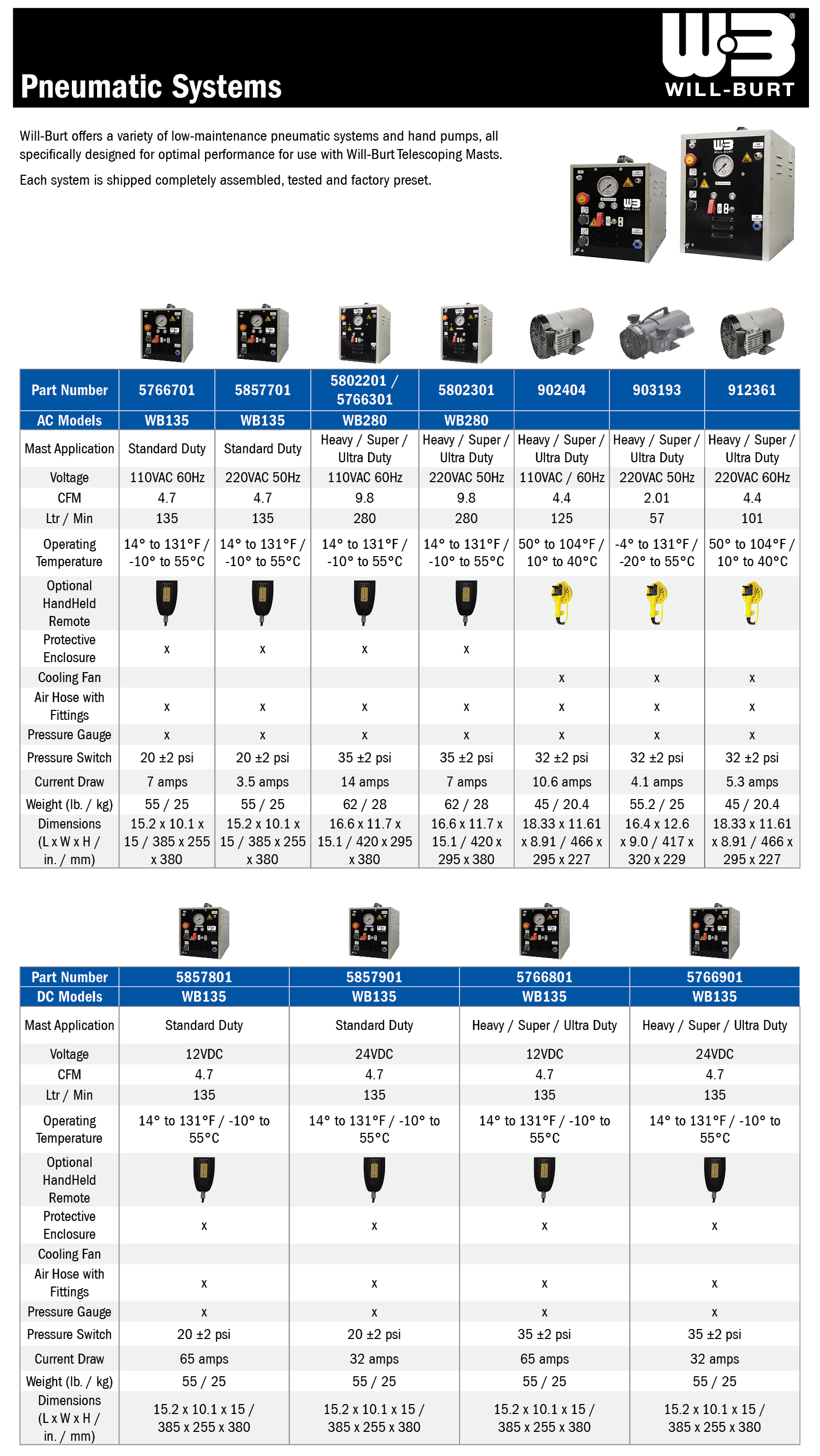

Pneumatic Systems

Will-Burt offers a variety of low maintenance oil-less air compressor systems and hand pumps, all specifically designed for optimal performance for use with Will-Burt Telescoping Masts. These pneumatic systems include only the highest quality components available to ensure the system will last the lifetime of the mast

Pneumatic System Accessories

TANKLESS PNEUMATIC COMPRESSOR
0-30 PSIG gauge
Pressure switch
Check valve
Mast control valve w/ handle
6 ft. / 1.8m of 3/8" air hose w/ NPT fittings
Operating instructions
PNEUMATIC COMPRESSOR with TANK
Regulator w/ 0-30 PSIG gauge
0-160 PSI tank gauge
Ball valve
Pressure switch
Check valve
Mast control valve w/ handles
6 ft. / 1.8m of 3/8" air hose w/ NPT fittings
Operating instructions

Compressor System Accessories

A-9283 Pneumatic KitThis air control valve assembly without compressor includes 0-160 PSIG air gauge, regulator, 0-30 PSIG air gauge, 10 feet (3m) of 3/8" air hose and NPT fittings.
900634 Filter LubricatorThis in line air lubricator filters out condensed moisture in air system and adds lubricant to the mast air supply.
900484 Filter Regulator LubricatorSame features as 900634 but also includes air regulator.


Each compressor system is shipped completely assembled, tested and factory preset.

Suggested Applications

High performance telescoping mast deployment with filter, lubricator, regulator and manual back-up.

Pneumatic Mast Hand Pump

The Will-Burt Military Pneumatic Mast Hand Pump is used to deploy a pneumatic mast where electric or pneumatic power is not available. The Military Hand Pump is capable of fully deploying a 16 foot Will-Burt Pneumatic Mast in less than 90 seconds. It will also operate in temperatures from -40°F to 160°F.The Will-Burt Military Pneumatic Mast Hand Pump is used to deploy a pneumatic mast where electric or pneumatic power is not available.  The Military Hand Pump is capable of fully deploying a 16 foot Will-Burt Pneumatic Mast in less than 90 seconds.  It will also operate in temperatures from -40°F to 160°F.

Pneumatic Mast Hand Pump Specifications

NamePneumatic Hand Pump
Operating Temperature-20°C - 60°C
FeaturesPumps air in both downward and upward stroke. Constructed of steel and aluminum.
IncludesSix feet of air hose and quick disconnect.

High Capacity Pneumatic Mast Hand Pump Specifications

NamePneumatic Hand Pump - High Capacity
Operating Temperature-40°C - 70°C
FeaturesConstructed of stainless steel and anodized aluminum with a black polane paint finish
IncludesSix feet of air hose, quick disconnect socket, quick disconnect plug, air drain cock.
