Cable Management

Will-Burt Cable Management accessories automatically retract to protect data and power cables

Cable Management

Will-Burt Cable Management accessories automatically retract to protect data and power cables.

NYCOIL® Cable Conduit

NYCOIL® Cable Conduit is the coiled hose used to house electrical wiring or antenna RF and positioner cable.

Essential Features

  • Compactly retracts when mast is nested
  • Easily fits around non-locking collar telescoping mast
  • Extends neatly with mast

Available Sizes

Base Tube DiameterPart NumberColorNycoil (ID) Internal DiameterCoil Outer Diameter
6.75"810902Gray1/2"9"
6.75" - 9"810988Gray3/4"13"
6.75" - 9"108497Black3/4"13"
6.75" - 9"810989Gray1"16.5"
6.75" - 9"810896Black1"16.5"
6.75" - 9"810918Red1 1/4"21.5"
6.75" - 9"811374Black1 1/4"21.5"

Options

  • Prewired NYCOIL® assemblies
  • Will-Burt can install customer supplied wires for an additional charge
  • Weathertight 90° elbow connectors

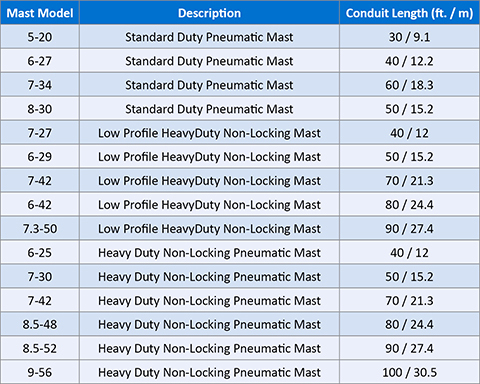

How to Determine the Length of NYCOIL® Needed
NYCOIL® length should be two times (2X) the difference between the mast extended and nested heights.

  • 5-20: 30 ft. / 9 m
  • 6-27: 40 ft. / 12 m
  • 7-34: 60 ft. / 18 m
  • 7-30: 50 ft. / 15 m
  • 7-42: 70 ft. / 21 m
  • 8.5-48: 80 ft. / 24 m
  • 8.5-52: 100 ft. / 30 m
  • 9.5-56: 100 ft. / 30 m
  • 9-58: 100 ft. / 30 m

Suggested Applications
Antenna RF, positioner and application specific electrical wiring housing

Nycoil Basket

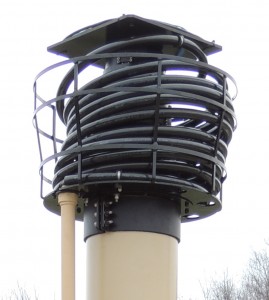

NYCOIL® Cable Basket

Will-Burt’s NYCOIL® Cable Basket is constructed of steel with a powder coat finish. Currently, we offer a NYCOIL® Cable Basket for the 6 m Stiletto as well as the 6m & 10m Stiletto HD.
