Compact Elevation System TRK


Will-Burt’s Compact Elevation System TRK is a rugged and precise mobile elevation platform that provides rapid deployment of a wide variety of sensors from a compact position in a standard 8’ pickup truck bed.

Will-Burt’s Compact Elevation System is a rugged and precise mobile elevation platform that provides rapid deployment of a wide variety of sensors from a compact position in a standard 8’ pickup truck bed. The compact design provides up to 24.7 ft3 / .7 m³ for the sensor payload with the tailgate in the closed position.

Available with an electro-mechanical or pneumatic elevation system, payload stability is assured with section keys and keyways that minimize rotational movement. Designed and Manufactured in the USA by The Will-Burt Company, the Compact Elevation System will optimize the performance of sensors resulting in mission success.

Essential Features

  • Covert
    • Elevation system and payload hidden within pickup bed envelope
    • Designed for transport while in horizontal or vertical positions
    • Under 30 second tilt time
  • Compact
    • Up to 24.7 ft3 / .7 m³ available space for the sensor payload
  • Minimized mast twist
    • Full-length mast section keys
  • Strong and Robust
    • No need for guying with field-proven rugged telescoping mast design
  • Flexible Installation
    • Skid design allows for installation on a variety of platforms
    • Available with mechanical or pneumatic elevation system
    • Cable management system

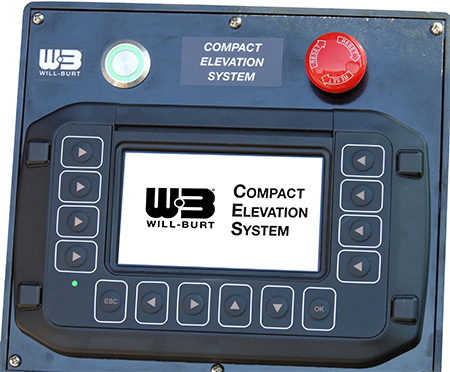

  • Integrated Controls
    • Fully integrated control system
    • PC control capable
        • CAN-bus J1939
        • RS485 Serial

      Specifications

      CES-TRK-SAL4m6m
      Stowed Dimensions (Lx W x H)53.4” x 41.8” x 21.8” / 1356mm x 1062mm x 555mm61.2” x 41.8” x 21.8” / 1555mm 1062mm x 555mm
      Available Area for Concealed
      Sensor Payload (8 ft. bed)
      42157.090 in³ & 1983.900 in² / 0.691m³ & 1.280 m²40203.363 in³ & 1875.316 in² / 0.659 m³ / 1.210 m²
      Extended Height13.1 ft. / 4 m19.6 ft. / 6 m
      Payload Capacity400 lbs. / 181 kg
      Telescopic Mast TypeAluminum Mechanical Screw-Drive with Automatic Locks
      Survival Wind Speed81 mph / 130 km/h
      Deployment Wind Speed35 mph / 56 km/h
      Tilt Up / Mast Deploy / Mast Retract / Tilt Down / Total Cycle Time / Approximate - Payload Dependent30 / 35 / 35 / 30 /
      130 Seconds
      30 / 60 / 60 / 30 /
      180 Seconds
      Rotation Accuracy (Twist)+/–1°
      Voltage (MIL-STD 1275)28 VDC
      *Typical Payload Sail Area12 ft² / 1.1 m² CD=1.5
      System Weight CES & Payload1440 lbs. / 653 kg1495 lbs. / 678 kg
      Integrated System ControlCAN-bus J1939, RS485 Serial, PC Control Capable
      2D Customer Drawing
      (Click Image to Enlarge)

      CES-TRK-SHDNL4m6m
      Stowed Dimensions (Lx W x H)56.7” x 41.8” x 21.8” / 1440 mm x 1062mm x 555mm66.6” x 41.8” x 21.8” / 1692 mm x 1062mm x 555mm
      Available Area for Concealed
      Sensor Payload (8 ft. bed)
      41316.195 in³ & 1937.140 in² / 0.677 m³ & 1.250 m²38836.011 in³ & 1799.352 in² / 0.637 m³ & 1.161 m²
      Extended Height13.1 ft. / 4 m19.6 ft. / 6 m
      Payload Capacity530 lbs. / 241 kg
      Telescopic Mast TypeAluminum Pneumatic
      Survival Wind Speed81 mph / 130 km/h
      Deployment Wind Speed35 mph / 56 km/h
      Tilt Up / Mast Deploy / Mast Retract / Tilt Down / Approximate - Payload Dependent30 /
      Deploy and Retract times are high variable /
      30 seconds
      *Typical Payload Sail Area12 ft² / 1.1 m² CD=1.5=
      System Weight CES & Payload1535 lbs. / 696 kg1579 lbs. / 716 kg
      Integrated System ControlCAN-bus J1939, RS485 Serial, PC Control Capable
      2D Customer Drawing
      (Click Image to Enlarge)
