Stiletto AL Telescoping Mast

The new alloy constructed Stiletto AL delivers the same precise pointing accuracy and payload management capabilities as the Stiletto composite mast

Stiletto AL

High accuracy electro-
mechanical telescoping mast

The Stiletto AL delivers an extremely stable and compact elevation platform for sensorsThe Stiletto AL delivers an extremely stable and compact elevation platform for sensors and antennas that require a high degree of pointing accuracy. This high strength alloy electro-mechanical telescoping mast with patent pending automatic locks does not require guying and safely deploys payloads at any height. The Stiletto AL is a cost-effective elevation platform designed to meet today’s stringent program requirements. and antennas that require a high degree of pointing accuracy. This high strength alloy electro-mechanical telescoping mast with patent pending automatic locks does not require guying and safely deploys payloads at any height. The Stiletto AL is a cost-effective elevation platform designed to meet today’s stringent program requirements.

Essential Features

  • No guying required, self-supporting mast
  • Minimal mast twist
    • Energized keyway guides in accessory-ready collars
  • Low wind deflection
    • Mast sections are held tight by constricting wear bands
  • Quiet Operation
    • Direct-drive system powered by environmentally sealed 600 watt DC motor with manual over ride
    • Patent Pending Quiet Locks The Stiletto and Stiletto HD are lightweight due to the use of composite materials in their construction and have been used in military and commercial applications around the world for a number of years. designed for heavy payloads
  • Reduced maintenance
    • Clean air filter system prevents dirt from entering mast
    • Integrated dirt / dust wipers and ice-breakers built into collars
  • High strength alloy construction
  • Integrated PC control

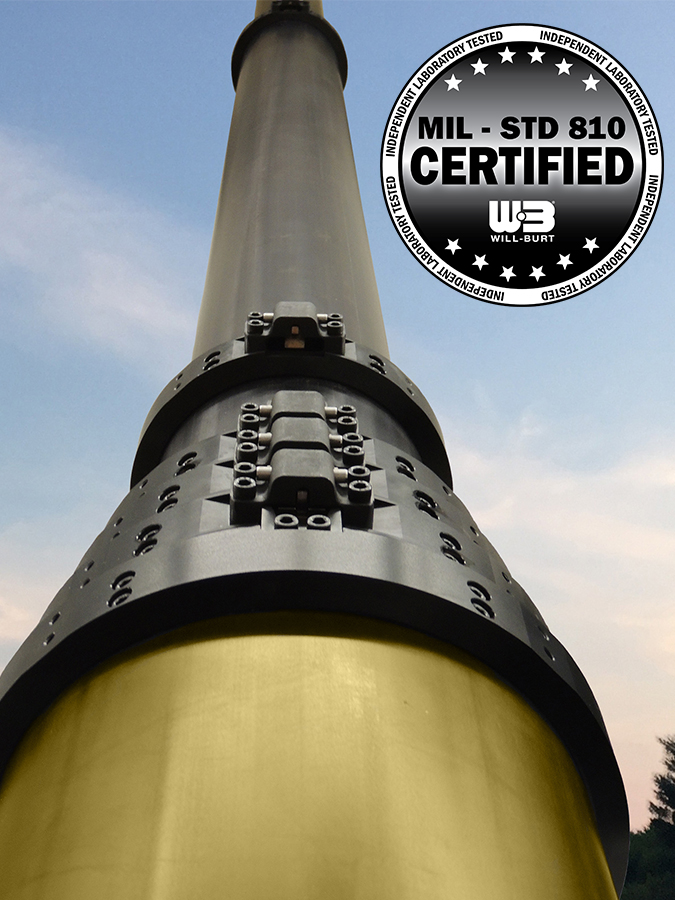

  • MIL-STD 810 compliant
The Stiletto AL delivers an extremely stable and compact elevation platform for sensors and antennas that require a high

Patent Pending Quiet Locks Designed for Heavy Payloads

Stiletto AL Close-up CARC

Quiet Sealed Direct-Drive System

Stiletto AL Wiper Bumpers CARC

Integrated Dust Wipers and Ice-Breakers

Specifications

Specifications4 meter6 meter8.5 meter10 meter15 meter
Extended Height (+4 in. / –0 in.)13.1 ft. / 4 m19.6 ft. / 6 m28 ft. / 8.54 m32.8 ft. / 10 m49.2 ft. / 15 m
Nested Height (+1 in. / -0 in.)50.4 in. / 1.28 m 62.2 in. / 1.58 m 74.02 in. / 1.88 m 82.68 in. / 2.10 m 104.4 in. / 2.65 m
Rated Payload Capacity400 lb / 181 kg400 lb / 181 kg400 lb / 181 kg400 lb / 181 kg350 lb / 158 kg
Weight (Including
Control Box and Cables)
260 lb / 118 kg315 lb / 143 kg353 lb / 160 kg390 lb / 177 kg490 lb / 222 kg
Number of Sections56778
Tube Diameter9.85 in. to 6.7 in. / 25 cm to 17 cm9.85 in. to 5.91 in. / 25 cm to 15 cm9.85 in. to 5.12 in. / 25 cm to 13 cm9.85 in. to 5.12 in. / 25 cm to 13 cm9.85 in. to 4.33 in. / 25 cm to 11 cm
Survival Wind Speed130 mph / 209 km/h115 mph / 185 km/h80 mph / 129 km/h80 mph / 129 km/h62 mph / 100 km/h
Deployment Wind Speed40 mph / 64 km/h40 mph / 64 km/h35 mph / 56 km/h35 mph / 56 km/h30 mph / 48 km/h
Erection Time with PowerLess than
35 seconds
Less than
60 seconds
Less than
100 seconds
Less than
100 seconds
Less than
150 seconds
Rotation Accuracy (Twist)+/–1°+/–1°+/–1°+/–1°+/–1°
Voltage (MIL-STD 1275)28 VDC28 VDC28 VDC28 VDC28 VDC
Footprint17.56 in. x 11.19 in. / 44.6 cm x 28.5 cm17.56 in. x 11.19 in. / 44.6 cm x 28.5 cm17.56 in. x 11.19 in. / 44.6 cm x 28.5 cm17.56 in. x 11.19 in. / 44.6 cm x 28.5 cm17.56 in. x 11.19 in. / 44.6 cm x 28.5 cm
*Typical Payload Sail Area 17 sqft / 1.58 sqm CD=1.512 sqft / 1.11 sqm CD=1.511 sqft / 1.02 sqm CD=1.511 sqft / 1.02 sqm CD=1.58 sqft / 0.74 sqm CD=1.5
2D Customer Drawing

Stiletto AL 4m Customer Drawing (0.2 MiB)

Stiletto AL 6m Customer Drawing (0.2 MiB)

Stiletto AL 8.5m Customer Drawing (0.3 MiB)

Stiletto AL 10m Customer Drawing (0.2 MiB)

Stiletto AL 15m Customer Drawing (0.2 MiB)


*Consult factory for larger sail area as payload and wind capacities may be reduced.
