Hurry-Up Portable Push Up Telescoping Mast

Hurry-Up® Portable
Push Up Telescoping Mast

The Hurry-Up manual push-up mast, can be extended to a full height of 30 feet (9 m) in one minute or less. The Hurry-Up mast features quick lock/release collars. Extend the mast manually by pushing up the sections and fixing them in position. This mast is ideal for fast deployment of light-weight antennas and instruments.

Read about the features and accessories below or contact us for more information about the Hurry-Up Mast.

Essential Features:

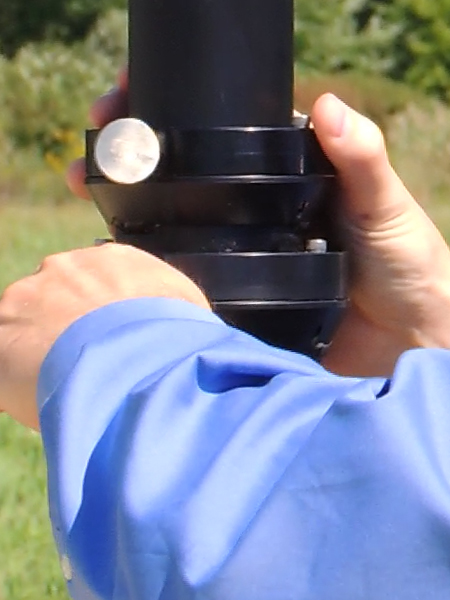

• Rigid azimuth locking collars
  • Quick height adjustments
• Black anodized finish
  • Corrosion resistant
• Simple design and operation
  • Manual push-up deployment, retraction, and locking of mast

Accessories (mounting option required):

• Drive-on plate mounting
  • No guylines required
• Removable payload extension stub
  • Easy payload mounting
• External support brackets
  • Permanent vehicle mounting
• Hitch Mount
  • 2″ Hitch – Removable

Model	713900710	719901610	903614	710103010
Extended Height	7 ft. / 2.1 m	16.4 ft. / 5.3 m	24.3 ft. / 7.6 m	30 ft. / 9 m
Nested Height	3 ft. 5 in. / 1.04 m	5 ft. 4 in. / 1.6 m	5 ft. 9 in. / 1.8 m	6 ft. 9 in. / 2 m
Payload Capacity	20 lb. / 9.1 kg	20 lb. / 9.1 kg	20 lb. / 9.1 kg	20 lb. / 9.1 kg
Approximate Weight	15 lb. / 7 kg	19 lb. / 9 kg	29 lb. / 13 kg	36 lb. / 16 kg
Number of Sections	3	4	6	6
Tube Diameter	3.5 in. - 2.625 in. / 89-67 mm	3.5 in. - 2.25 in. / 89-57 mm	3.5 in. - 1.5 in. / 89-38 mm	3.5 in. - 1.5 in. / 89-38 mm
Collar Type	Friction Locking	Friction Locking	Friction Locking	Friction Locking
Finish	Black anodize, MIL-A-8625, Type II, Class 2	Black anodize, MIL-A-8625, Type II, Class 2	Black anodize, MIL-A-8625, Type II, Class 2	Black anodize, MIL-A-8625, Type II, Class 2
2D Customer Drawing	Hurry Up 3.5-7 Customer Drawing (0.1 MiB)	Hurry Up 5.3-16.4 Customer Drawing (0.1 MiB)	Hurry Up 6-25 Customer Drawing (0.3 MiB)	Hurry Up 6.7-30 Customer Drawing (0.3 MiB)

Specifications are for reference only and are subject to change. Please contact Will-Burt Engineering for current and exact specifications.
