Pan and Tilt Positioner Controller with Real-Time Positioner Feedback
The latest positioner controller from Will-Burt is loaded with new features. You will always know the status of the positioner with real-time positional, speed, and status feedback. Control multiple positioners and third-party equipment with a single controller. This controller is optimized for positioners with stow and deploy buttons located on the front panel.
The new Positioner Controller from Will-Burt will simplify deployment and operation of communications and video equipment.
19-inch (2U) Rack Mount Controller for controlling Will-Burt mobile and static positioners
- LCD Home Screen displays real-time positioner information
- LCD Selector Menu provides additional control functionality
- Control third-party equipment through (7) digital discrete outputs with USB and RS-485 inputs
- Control multiple positioners in single system through address selection

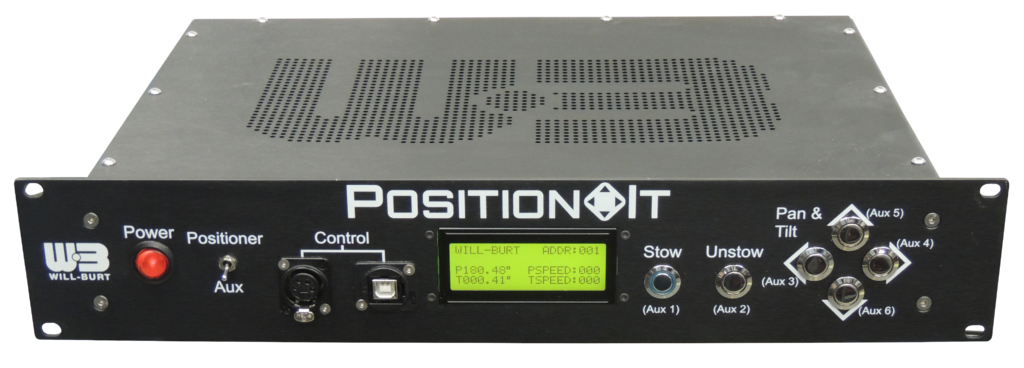

- Positioner control with front panel directional push buttons and configurable ‘Stow’ and ‘Unstow’ presets
- Pelco-D over RS-485 half-duplex output to positioner
- 100-240VAC input voltage with 24VDC output voltage to positioner
|Communication||Pelco-D over RS-485 half-duplex at 2400 bps|
|Operating Temperature||32°F to 122°F / 0°C to 50°C|
|Weight||6.6 lbs. / 3kg|

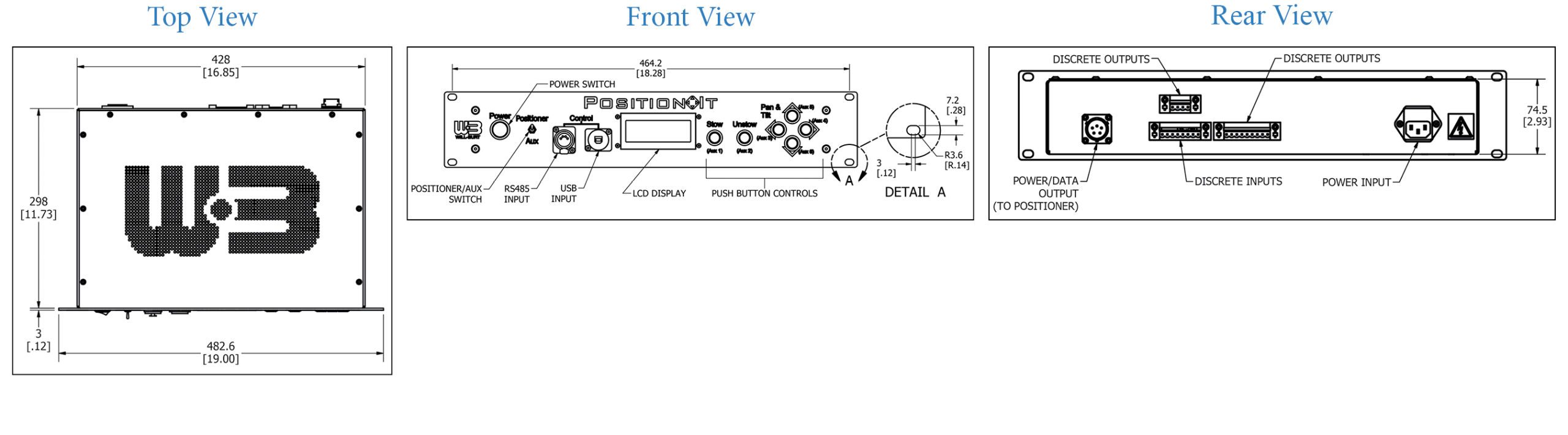

|Dimensions (W x H x D)||19” x 3.5” x 11.7” / 48.26cm x 8.81cm x 29.8cm|
|Power||100-240VAC input 24VDC output|
