Hurry-Up Portable Pump Up Mast

The Hurry-Up Pump Portable Telescoping Mast delivers fast deployment, portability, flexibility, value, and robust performance.

Hurry-Up® Portable Pump Up Telescoping Mast

Quick deploy, portable pneumatic mast for communications, video, and surveillance

The Hurry-Up Portable Pump Up Telescoping Mast by Will-Burt is a pneumatic mast with attached, manual pump that includes a carry bag and is easily transported and deployed by a single person. Available in heights up to 39 ft. / 12 meters with payload capability up to 55 lbs. / 25 kg this lightweight and compact telescoping mast is perfect for deploying antennas, cameras, and other sensors.

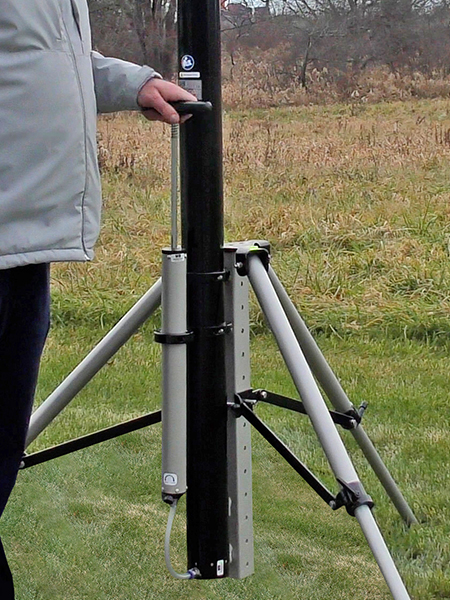

The Hurry-Up Portable Telescoping Pump Mast is highly flexible and versatile. Optional accessories are available that allow it to be deployed in a variety of settings. A tripod with built-in level and four large base plates provide a secure foundation for securing the mast. A compact Drive-On Stand allows for the weight of a vehicle to be used to provide stable support for the mast. A 2” trailer Hitch-Mount provides a third mounting option for the mast. The mounting accessories are designed so they can be integrated with one another. The tripod does not need to be removed to be used with the Drive-On Stand or the Hitch-Mount.

The Hurry-Up Pump Mast delivers fast deployment, portability, flexibility, value, and robust performance.

Specifications

Model57708015769501576960157697015771001
Extended Height13.1 ft. / 4 m19.6 ft. / 6 m26.2 ft. / 8 m32.8 ft. / 10 m39.3 ft. / 12 m
Nested Height4.2 ft. / 1.25 m5.3 ft. / 1.60 m6.7 ft. / 2.0 m8.6 ft. / 2.60 m9.9 ft. / 3.0 m
Payload Capacity55.1 lbs. / 25 kg55.1 lbs. / 25 kg48.5 lbs. / 22 kg44.1 lbs. / 20 kg44.1 lbs. / 20 kg
Approximate Weight24.3 lbs. / 11 kg28.6 lbs. / 13 kg37.5 lbs. / 17 kg44.1 lbs. / 20 kg50.7 lbs. / 23 kg
Number of Sections55555
Tube Diameter3.54 in. - 1.97 in. / 90 mm - 50 mm3.54 in. - 1.97 in. / 90 mm - 50 mm3.54 in. - 1.97 in. / 90 mm - 50 mm3.54 in. - 1.97 in. / 90 mm - 50 mm3.54 in. - 1.97 in. / 90 mm - 50 mm
Collar TypeFriction LockingFriction LockingFriction LockingFriction LockingFriction Locking
FinishBlack paint and
Clear anodize
Black paint and
Clear anodize
Black paint and
Clear anodize
Black paint and
Clear anodize
Black paint and
Clear anodize

Features and Benefits

The Hurry-Up Portable Pump Up Telescoping Mast is flexible and versatile with optional accessories allowing it to be deployed in a variety of settings and designed to be integrated with one another.

Click to Enlarge
