Night Scan® HDT Scene Lighting

The Night Scan line of rugged, Heavy-Duty Towing LED Lights are built for your world. The tough and compact, aluminum housing coupled with ultra-bright Cree LEDs makes it the perfect light for any application.

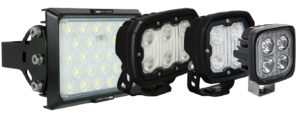

Night Scan HDT
Scene Lighting

The Night Scan line of rugged, Heavy-Duty Towing LED Lights are built for your world. The tough and compact, aluminum housing coupled with ultra-bright Cree LEDs makes it the perfect light for any application. From fog lights to roof rack, work light and reverseFrom fog lights to roof rack, work light and reverse lighting, Night Scan’s HDT LED lights combine usability with affordability to create the ultimate lighting solution. The HDT Series lights come standard with a single bolt mounting bracket, wiring harness, and 2-year warranty. lighting, Night Scan’s HDT LED lights combine usability with affordability to create the ultimate lighting solution. The HDT Series lights come standard with a single bolt mounting bracket, wiring harness, and 2-year warranty.

Essential Features

  • Cast Aluminum Housings & Polycarbonate Lenses
  • Extreme Output / Long-Life LEDs
  • Water-proof (IP69k) Housing with Weather-proof Connectors
  • Two-year Warranty
  • Ultra Bright Cree LEDs
  • Single Bolt Trunnion Bracket

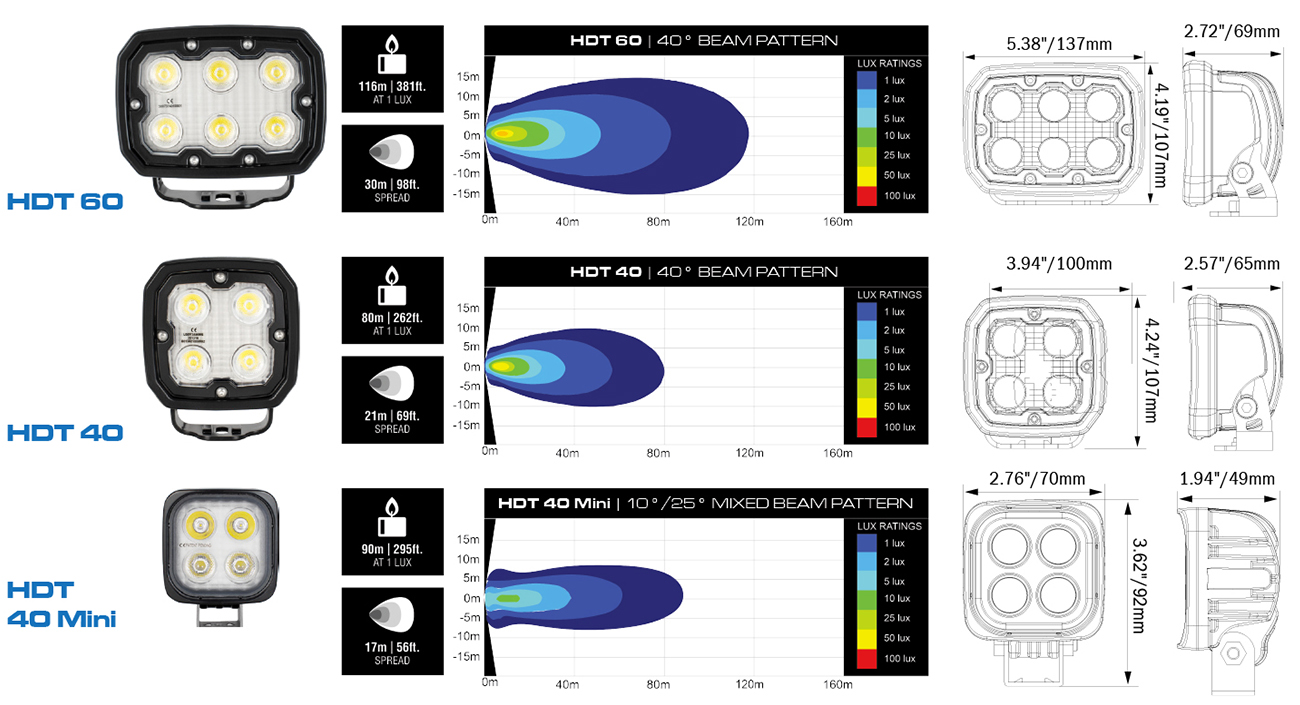

Specifications

ModelWB 140HDT 60HDT 40HDT 40 Mini
LED(27) 1.8W(6) 5W CREE(4) 5W CREE(4) 3W CREE
Beam Pattern60°40°40°10°/25° Mixed Beam
Raw Lumens (lm)14,0003,6862,1122,000
Effective Lumens (lm)8,3502,5901,480950
Usable Light Distance at 1 Lux328 ft. / 100m381 ft. / 116m262 ft. / 80m295 ft. / 90m
Watts50W30W20W12W
Amp Draw @12V4.2A2.5A1.67A1A
Input Voltage10-32V DC11-65V DC11-65V DC11-65V DC
Size (W x H x D)7.60" x 5.55" x 1.65"5.38” x 4.19” x 2.72”3.94” x 4.42” x 2.57”2.75” x 3.62” x 1.94”
Weight2.75 lb / 1.25 kg2.63 lb / 1.2 kg1.50 lb / .68 kg.88 lb / 0.4 kg

Engineering Specifications
