Specifications

The AntennaMasts provide extremely capable and flexible mast systems that are able to perform across a wide spectrum of mission profiles. We offer five unique mast variants that can be configured to meet all of your critical mission requirements. View the various specifications below.
The AntennaMasts by Will-Burt provide extremely capable and flexible mast systems that are able to perform across a wide spectrum of mission profiles. We offer five unique mast variants that can be configured to meet all of your critical mission requirements. Our products are in use around the world in numerous industries and militaries and have secured a well-founded reputation for excellence. View the various mast specifications below from our in-house engineering and design team with unmatched capabilities supported by a certified ISO 9001:2015 quality management system. Specifications are for reference only and are subject to change. Please contact Will-Burt Engineering for current and exact specifications.

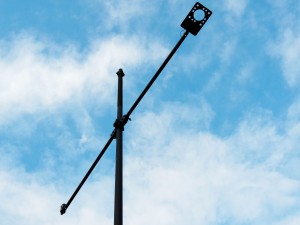

AntennaMast Model AM2 Specifications

Height
(m / ft.)
Model # Deployable Load
(kg / lb.)
Deployment
Method
Deployment
Time
System Weight
(kg / lb.)
Guying
(Primary / Secondary)
Wind Survival Speed
(km/h / mph)
2D Customer
Drawing
15 / 49.2 715061500 9.1 / 20 Manual 20-30 (2-4 persons) 47 / 103.6 Top / Mid Guying Optional 113 / 70 @ 4 sq. ft.
2D Customer Drawing
14 / 45.9 715061400 11.3 / 25 Manual 15-20 (2-3 persons) 45.6 / 100.5 Top / Mid Guying Optional 113 / 70 @ 4 sq. ft.
2D Customer Drawing
13 / 42.7 715061300 13.6 / 30 Manual 15-20 (2-3 persons) 44 / 97 Top / Mid Guying Optional 113 / 70 @ 4 sq. ft.
2D Customer Drawing
12 / 39.4 715061200 15.9 / 35 Manual 15-20 (2-3 persons) 42.5 / 93.8 Top / Mid Guying Optional 113 / 70 @ 4 sq. ft.
2D Customer Drawing
11 / 36.1 715061100 18.1 / 40 Manual 15-20 (2-3 persons) 41.1 / 90.5 Top / Mid Guying Optional 113 / 70 @ 4 sq. ft.
2D Customer Drawing
10 / 32.8 715061000 22.7 / 50 Manual 15-18 (1-3 persons) 39.6 / 87.3 Top / Mid Guying Optional 113 / 70 @ 6 sq. ft.
2D Customer Drawing
9 / 29.5 715060900 24.9 / 55 Manual 15-18 (1-3 persons) 38.1 / 84 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
8 / 26.2 715060800 24.9 / 55 Manual 15-18 (1-3 persons) 36.7 / 80.8 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
7 / 23 715060700 27.2 / 60 Manual 10-18 (1-2 persons) 35.2 / 77.6 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
6 / 19.7 715060600 27.2 / 60 Manual 10-18 (1-2 persons) 33.7 / 74.3 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
5 / 16.4 715060500 29.5 / 65 Manual 5-10 (1-2 persons) 32.2 / 71 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
4 / 13.1 715060400 34 / 75 Manual 5-10 (1-2 persons) 30.8 / 67.8 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
3 / 9.8 715060300 38.6 / 85 Manual 5-10 (1-2 persons) 29.3 / 64.6 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
2 / 6.6 715060200 45.4 / 100 Manual 5-10 (1-2 persons) 27.8 / 61.3 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing

AM2 with Mast Tube Lift Winch Specifications

Height
(m / ft.)
Model # Deployable Load
(kg / lb.)
Deployment
Method
Deployment
Time
System Weight
(kg / lb.)
Guying
(Primary / Secondary)
Wind Survival Speed
(km/h / mph)
2D Customer
Drawing
15 / 49.2 715071500 9.1 / 20 LIft Winch 20-30 (2-4 persons) 50.2 / 110.6 Top / Mid Guying Optional 113 / 70 @ 4 sq. ft.
2D Customer Drawing
14 / 45.9 715071400 11.3 / 25 LIft Winch 15-20 (2-3 persons) 48.8 / 107.5 Top / Mid Guying Optional 113 / 70 @ 4 sq. ft.
2D Customer Drawing
13 / 42.7 715071300 13.6 / 30 LIft Winch 15-20 (2-3 persons) 47.4 / 104.5 Top / Mid Guying Optional 113 / 70 @ 4 sq. ft.
2D Customer Drawing
12 / 39.4 715071200 15.9 / 35 LIft Winch 15-20 (2-3 persons) 45.7 / 100.8 Top / Mid Guying Optional 113 / 70 @ 4 sq. ft.
2D Customer Drawing
11 / 36.1 715071100 18.1 / 40 LIft Winch 15-20 (2-3 persons) 44.2 / 97.5 Top / Mid Guying Optional 113 / 70 @ 4 sq. ft.
2D Customer Drawing
10 / 32.8 715071000 22.7 / 50 LIft Winch 15-18 (1-3 persons) 42.8 / 94.3 Top / Mid Guying Optional 113 / 70 @ 6 sq. ft.
2D Customer Drawing
9 / 29.5 715070900 24.9 / 55 LIft Winch 15-18 (1-3 persons) 41.3 / 91 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
8 / 26.2 715070800 24.9 / 55 LIft Winch 15-18 (1-3 persons) 39.8 / 87.8 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
7 / 23 715070700 27.2 / 60 LIft Winch 10-18 (1-2 persons) 38.4 / 84.6 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
6 / 19.7 715070600 27.2 / 60 LIft Winch 10-18 (1-2 persons) 36.9 / 81.3 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
5 / 16.4 715070500 29.5 / 65 LIft Winch 5-10 (1-2 persons) 35.4 / 78 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
4 / 13.1 715070400 34 / 75 LIft Winch 5-10 (1-2 persons) 33.9 / 74.8 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
3 / 9.8 715070300 38.6 / 85 LIft Winch 5-10 (1-2 persons) 32.5 / 71.6 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
2 / 6.6 715070200 45.4 / 100 LIft Winch 5-10 (1-2 persons) 31 / 68.3 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing

AM2 with EZ Raze Payload Elevation Systems Specifications

Height
(m / ft.)
Model # Deployable Load
(kg / lb.)
Deployment
Method
Deployment
Time
System Weight
(kg / lb.)
Guying
(Primary / Secondary)
Wind Survival Speed
(km/h / mph)
2D Customer
Drawing
15 / 49.2 715191500 22.7 / 50 Carriage 20-30 (2-4 persons) 52.4 / 115.6 Top 113 / 70 @ 1 sq. ft.
2D Customer Drawing
14 / 45.9 715191400 24.9 / 55 Carriage 15-20 (2-3 persons) 51 / 112.5 Top 113 / 70 @ 2 sq. ft.
2D Customer Drawing
13 / 42.7 715191300 27.2 / 60 Carriage 15-20 (2-3 persons) 49.5 / 109.1 Top 113 / 70 @ 3 sq. ft.
2D Customer Drawing
12 / 39.4 715191200 29.5 / 65 Carriage 15-20 (2-3 persons) 48 / 105.9 Top 113 / 70 @ 4 sq. ft.
2D Customer Drawing
11 / 36.1 715191100 31.8 / 70 Carriage 15-20 (2-3 persons) 46.5 / 102.6 Top 113 / 70 @ 4 sq. ft.
2D Customer Drawing
10 / 32.8 715191000 34 / 75 Carriage 15-18 (1-3 persons) 45.1 / 99.4 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
9 / 29.5 715190900 34 / 75 Carriage 15-18 (1-3 persons) 43.6 / 96.1 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
8 / 26.2 715190800 34 / 75 Carriage 15-18 (1-3 persons) 42.1 / 92.9 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
7 / 23 715190700 34 / 75 Carriage 10-18 (1-2 persons) 40.6 / 89.6 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
6 / 19.7 715190600 34 / 75 Carriage 10-18 (1-2 persons) 39.2 / 86.4 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
5 / 16.4 715190500 34 / 75 Carriage 5-10 (1-2 persons) 37.7 / 83.1 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
4 / 13.1 715190400 34 / 75 Carriage 5-10 (1-2 persons) 36.2 / 79.9 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
3 / 9.8 715190300 34 / 75 Carriage 5-10 (1-2 persons) 34.7 / 76.6 Top 113 / 70 @ 6 sq. ft.
2D Customer Drawing
